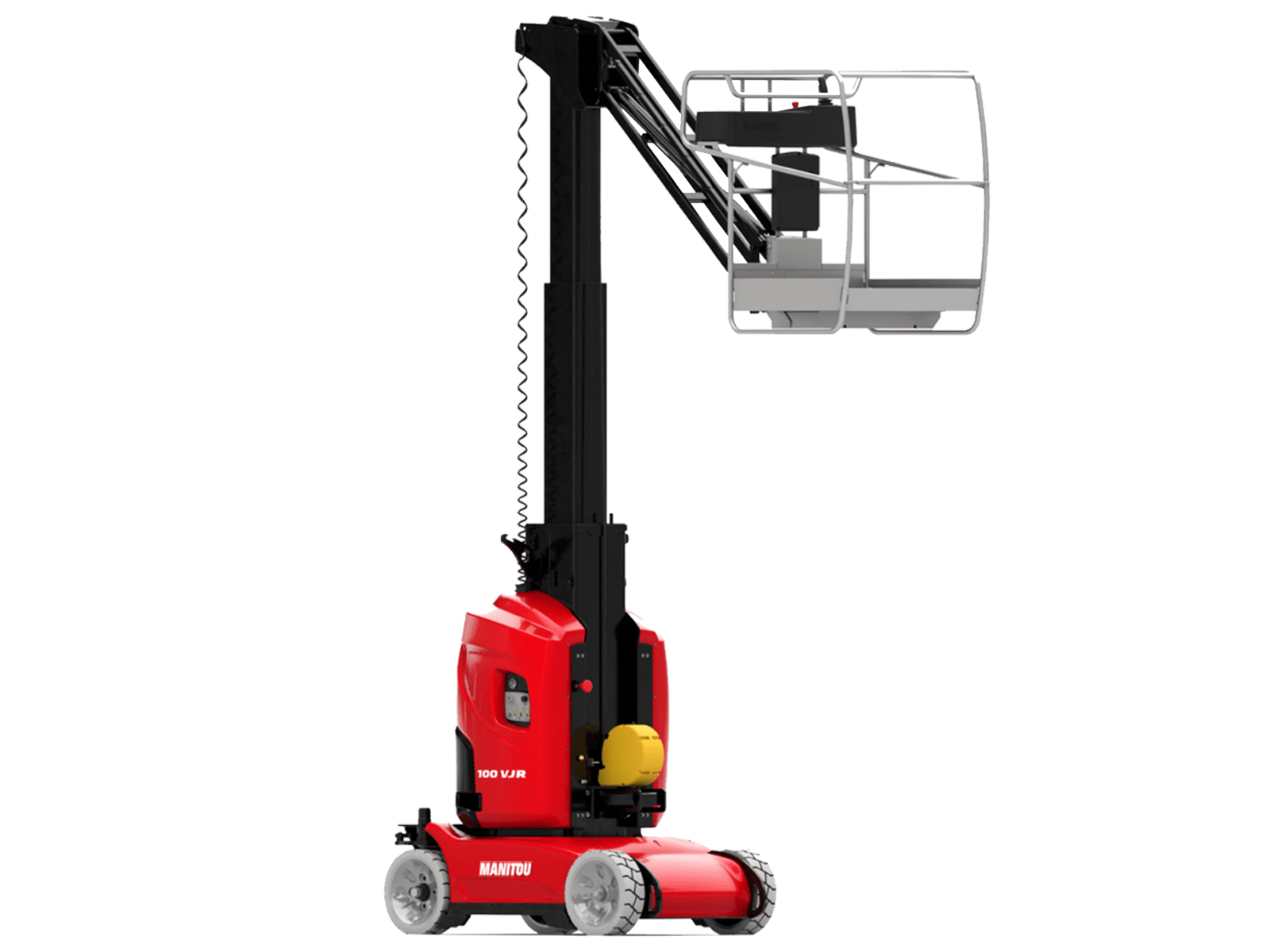

Mast Lift
Key Specs

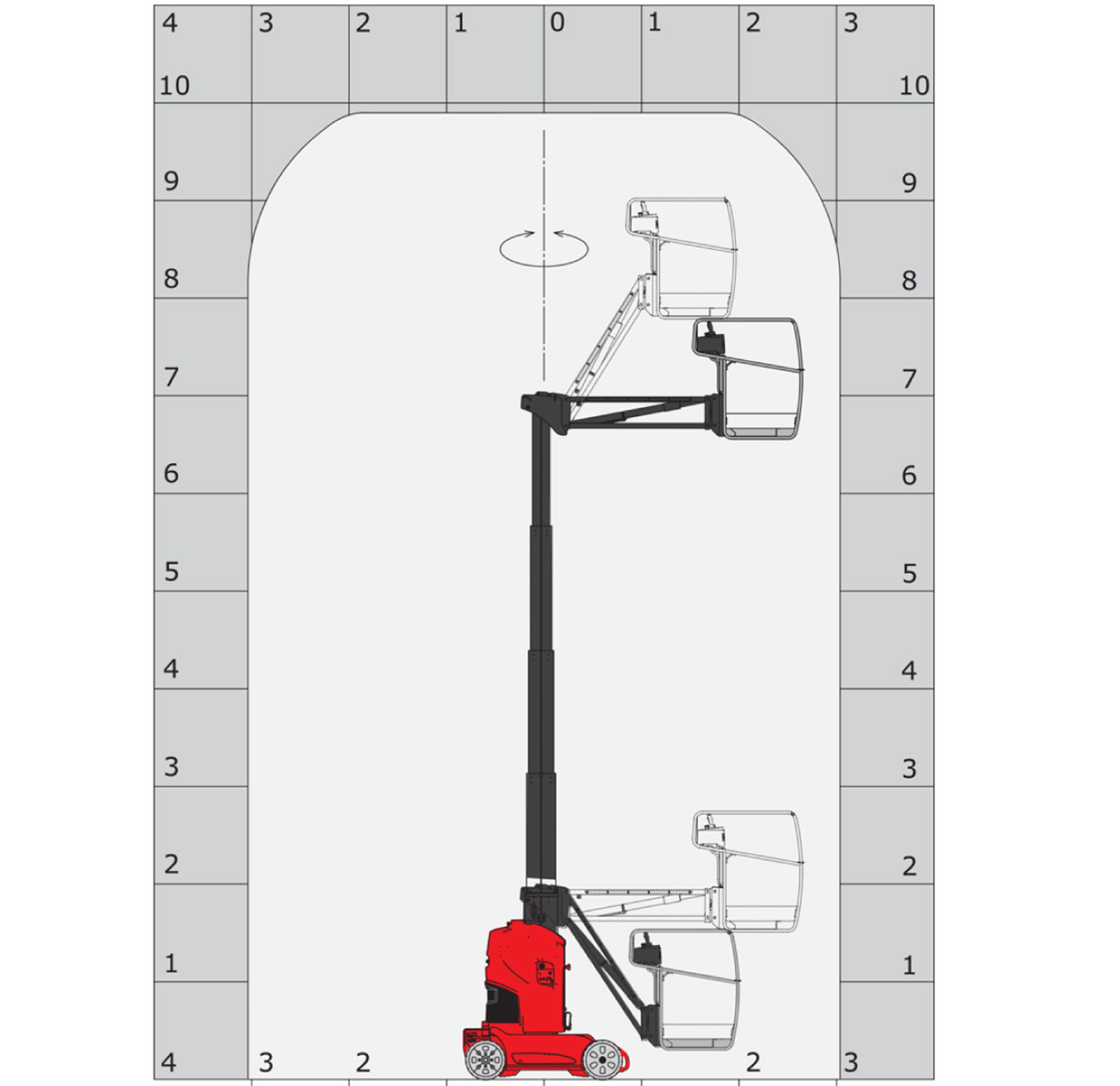

- Working height: h21 / 9.85 m
- Platform height: h7 / 7.85 m
- Max. outreach: 3.15 m
- Overhang: 6.67 m
- Pendular arm rotation (bottom): +-70 °
- Platform capacity: Q / 200 kg
- Turret rotation: 350 °
- Number of people (inside / outside): 2 / 1
- Platform dimensions (length x width): lp / ep / 1.11 m x 0.93 m
- Overall width: b1 / 0.99 m
- Overall length: l1 / 2.80 m
- Overall height: h17 / 1.99 m
- Floor height (access): h20 / 0.51 m
- Counterweight offset (turret at 90°): a7 / 0.09 m
- Internal turning radius (over tyres): b13 / 0.59 m
- External turning radius: Wa3 / 2.09 m
- Ground clearance under pothole protection: m6 / 0.02 m
- Ground clearance at centre of wheelbase: m2 / 0.09 m
- Wheelbase: y / 1.20 m
Key Features
- Audible alarm and illuminated indicator lamp (leveling, overload, lowering)
- Battery charge indicator lamp
- CAN bus technology
- Emergency stop button in platform and on frame
- Fixed pothole protection
- Fork pockets
- Horn in the platform
- Hour meter
- Integrated diagnostic assistance
- Manual emergency lowering
- Multi-voltage integrated charger
- Negative-type braking on rear wheels
- Non-marking rubber tyres
- Pendular arm
- Platform with open-work floor
- Proportional controls
- Slinging and securing rings
- Tool box in platform
- Traction battery
