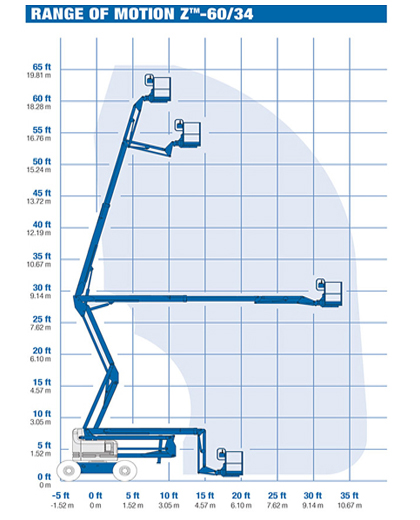

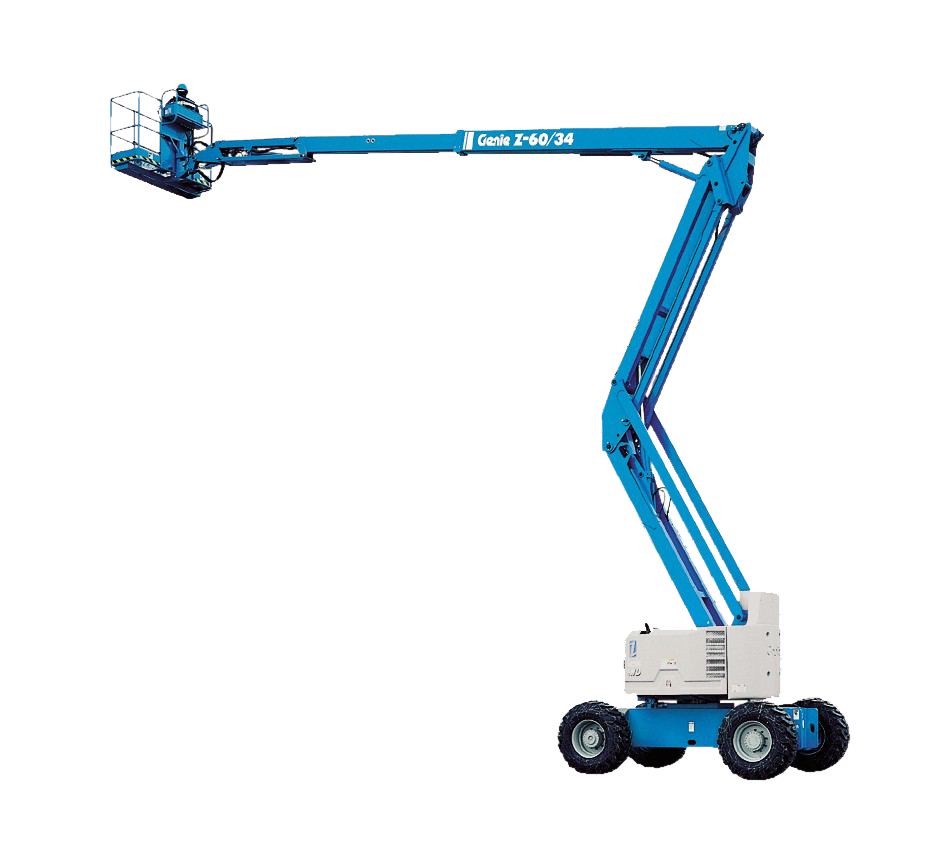

Overview

• Articulating boom with a 6 ft (1.83 m) jib for added maneuverability to access hard-to-reach areas
• Extends 7 ft to 28 ft (2.13 to 8.5 m) along a vertical plane without having to extend or retract the telescoping boom
• Raise boom from ground to full 66 ft (20.39 m) working height comfortably in just 100 seconds
• Swing-out engine tray gives easy access for routine maintenance
• Rugged fiberglass turntable covers reduces the dents, color fading and rust common with steel covers
• Fully proportional controls allow quick, precise access to work areas for increased productivity
• Tight turn radius and zero tailswing provides maneuverability in confined work areas
• Generous 14 in (.41 m) clearance decreases the risk of damage due to bottoming out on rough terrain
• 4WD traction allows gradeability up to 40%

SPECIFICATIONS

• Working Height: 66 ft 4 in (20.39 m)
• Width -8 ft 1 in (2.46 m)
• Horizontal Reach -36 ft 3 in (11.05 m)
• Up & Over Clearance - 27 ft (8.23 m)
• Lift Capacity - 500 lbs (227 kg)

Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height

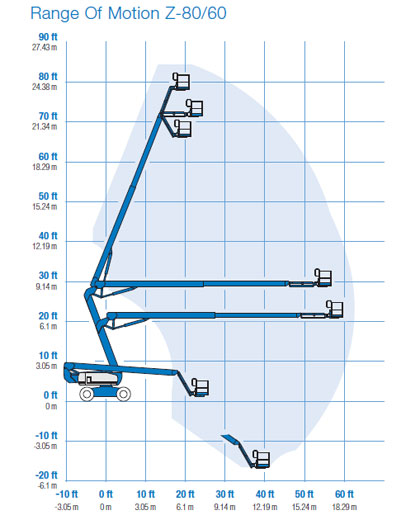

Overview

• Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
• Full-time positive traction and full-time 4WD (4WD models) for a smooth ride on rough ground conditions
• Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
• Quiet diesel engine options for increased performance, gradeability and terrainability
• Platform hydraulically rotates 160˚ and stays level throughout the entire range of motion
• Smooth, precise, fully proportional platform controls with ramp up/down feature
• 360° continuous turntable rotation for fast, easy positioning
• Steel 6 or 8 ft (1.83 or 2.44 m) platform with up to 500 lb (227 kg) lift capacity
• Dual fuel (Gas/LPG) or diesel engine options

Key Specs

• Working Height*: 84 ft (25.77 m)
• Width- 8 ft 2 in (2.49 m)
• Horizontal Reach - 60 ft (18.29 m)
• Up & Over Clearance - 29 ft (8.83 m)
• Lift Capacity- 500 lbs (227 kg)

Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height

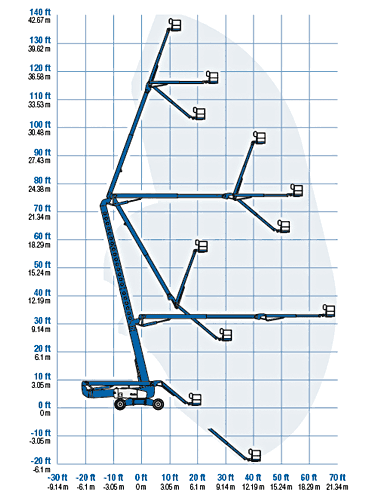

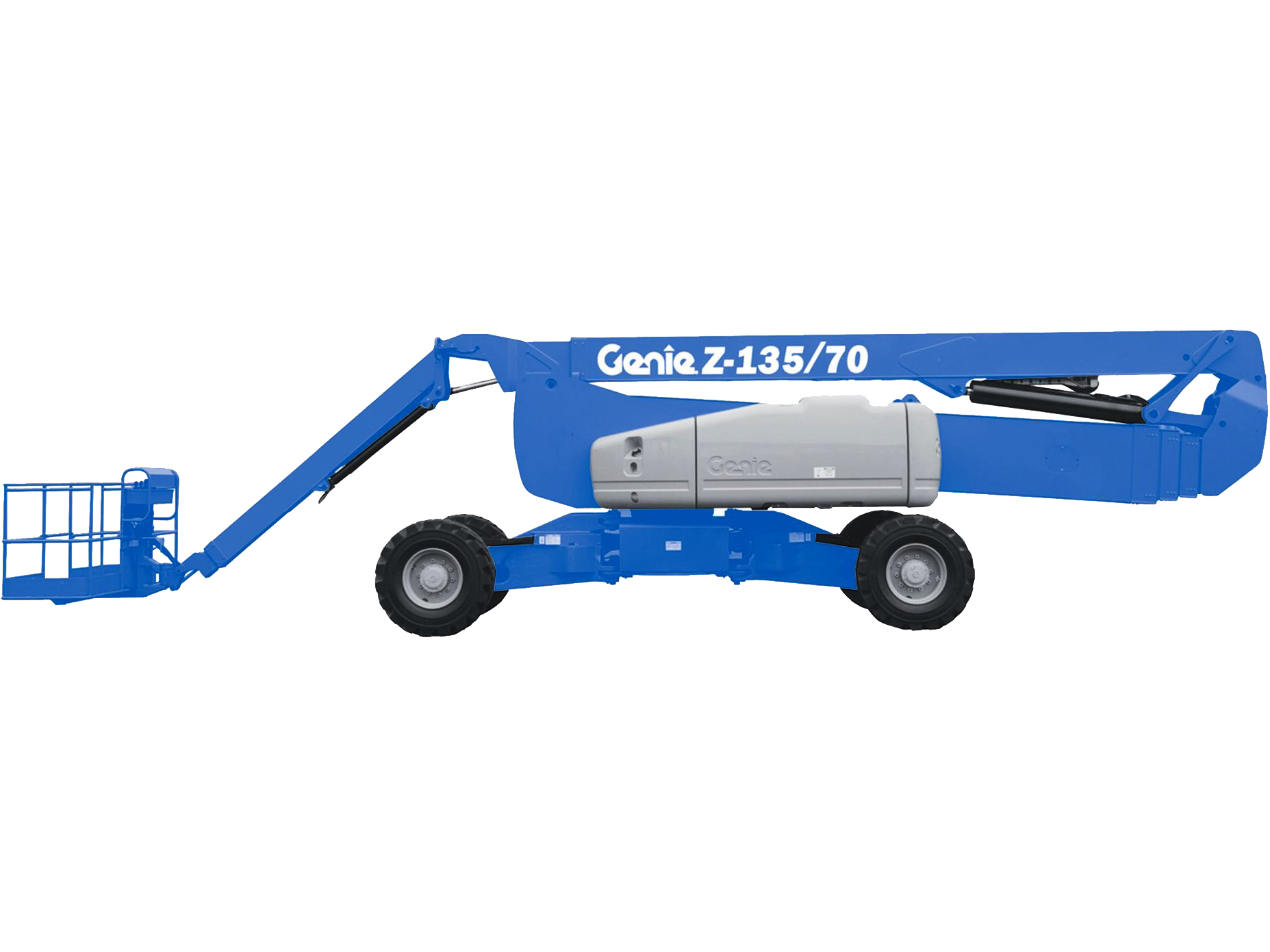

Overview

New X-design drive chassis extends and retracts to provide both stability on the job and a narrow profile for transport

Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion

360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning

Four-wheel drive with full-time positive traction handles rough ground conditions to enhance the smoothness of the ride

Four-wheel steer with front-wheel, rear-wheel, crab- and coordinated- steer options available to provide additional maneuverability

Full-time positive traction 4WD and four wheel brakes

The ALC 1000 electronic control system provides menu-based adjustments for machine and component calibration as well as on-screen multi-language system diagnostics

Key Specs

• Working Height*:141 ft (43.15 m)
• Width - axles extended - 16 ft 6 in (5.03 m)
• Width - axles retracted - 8 ft 2 in (2.49 m)
• Horizontal Reach - riser extended -59 ft 2 in (18.03 m)
• Horizontal Reach - riser retracted - 69 ft 9 in (21.26 m)
• Up & Over Clearance - riser extended -75 ft 6 in (23.01 m)
• Up & Over Clearance - riser retracted - 32 ft 6 in (9.91 m)
• Lift Capacity -600 lbs (272 kg)

Key Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height
