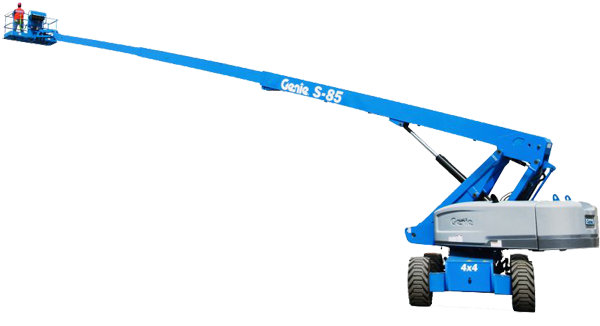

Overview

• Dual capacity — select either 500 lbs (227 kg) or 1000 lbs (454 kg) within restricted outreach for up to three occupants plus equipment
• Ramped boom control system provides smooth boom functions and finer control
• Ramped boom control system provides smooth boom functions and finer control
• Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
• Positive traction drive maintains equal power to all drive wheels
• Fixed-width axles allow faster setup
• Active oscillating axle enhances traction on rough terrain
• 360˚continuous rotation turntable for quick positioning

Key Specs

• Working Height*: 86 ft (26.20 m)
• Platform Height - 80 ft (24.40 m)
• Horizontal Reach -71 ft 6 in (21.80 m)
• Lift Capacity: 1000 lb (454 kg) / 500 lb (227 kg)**

Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height
• Maximum outreach zone / maximum capacity zone

Overview

• Ramped boom control system provides smooth boom functions and finer control
• Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight
• Positive traction drive maintains equal power to all drive wheels
• Fixed-width axles allow faster setup
• Active oscillating axle enhances traction on rough terrain
• 360˚continuous rotation turntable for quick positioning
• Self-leveling platform with hydraulic platform rotation

Key Specs

• Working Height*: 91 ft (27.70 m)
• Platform Height - 85 ft (25.90 m)
• Horizontal Reach - 76 ft 6 in (23.30 m)
• Lift Capacity- 500 lbs (227 kg)

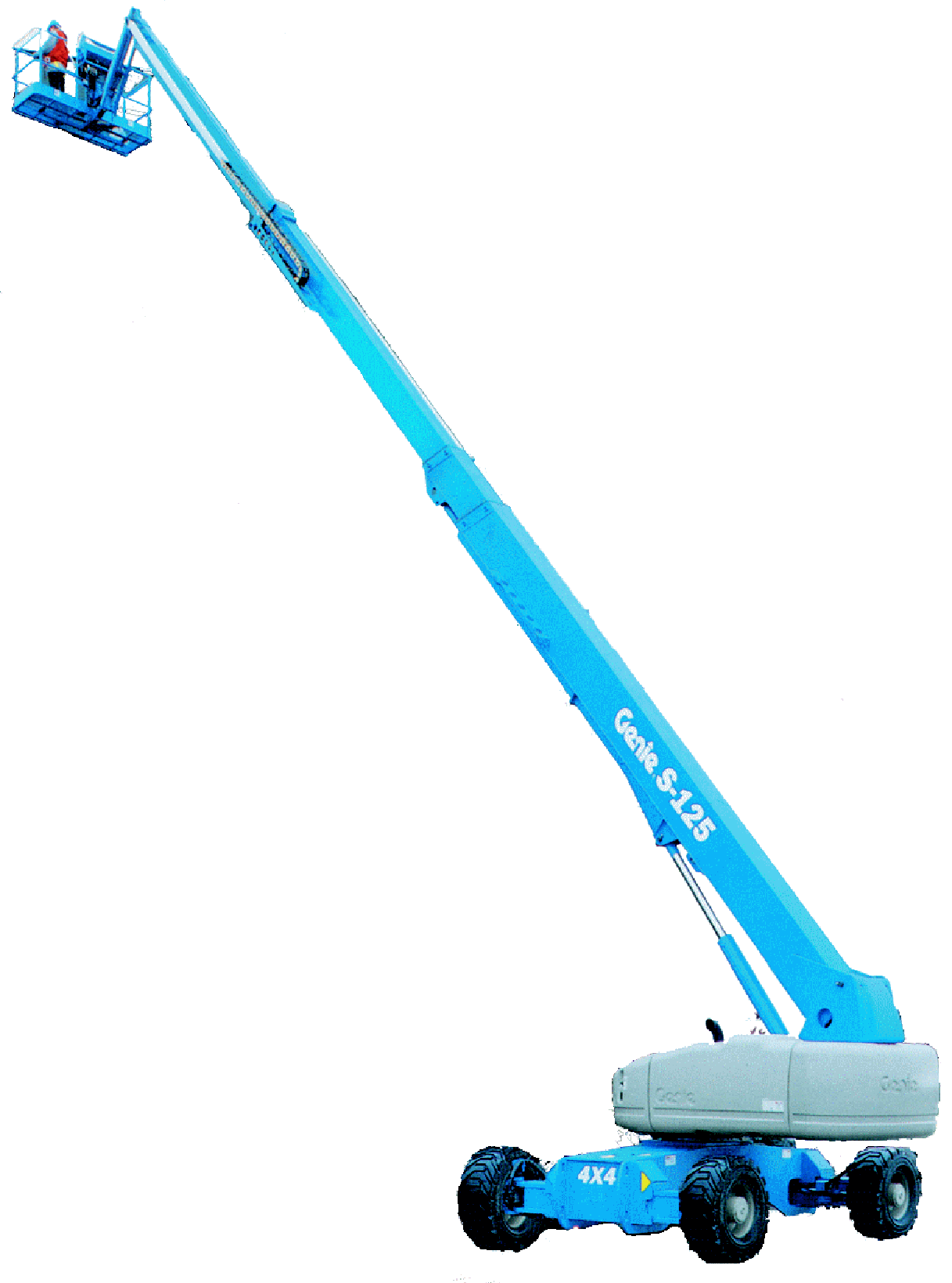

Overview

• Super Boom models combine maximum reach with exceptional maneuverability
• Four-wheel steer includes front, rear, crab and coordinated steer functions
• Four-wheel drive and four-wheel brakes
• Extendable axles operated from platform allow convenient transport
• Fully proportional platform controls with ramp up/down feature
• Three quiet, powerful diesel engine options
• Standard 8 ft (2.44 m) self-leveling platform with hydraulic rotation
• Out-and-up articulating jib option

Key Specs

• Working Height*: 131 ft 2 in (40.15 m)
• Platform Height - 125 ft 2 in (38.15 m)
• Horizontal Reach -80 ft (24.38 m)
• Below Ground Reach -10 ft 9 in (3.27 m)
• Lift Capacity: 500 lbs (227 kg)

Key Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height

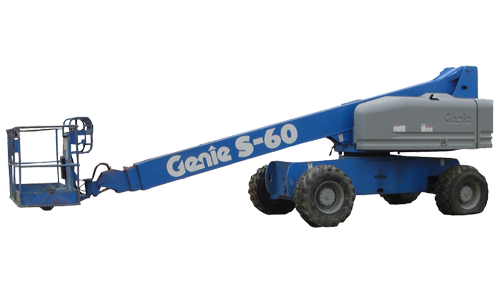

Overview

• Available with exclusive four-point Trax track drive system for improved terrainability and reduced damage to sensitive ground surfaces
• Industry-leading 1,250-lb. capacity enabling three-person occupancy
• Active oscillation axle system senses the terrain and adjusts the axle position based on ground conditions
• Self-leveling platform with hydraulic with rotation
• 360° continuous turntable rotation
• Fully proportional Hall effect joystick controls
• Two speed wheel motors

Key Specs

• Working Height*: 66 ft (20.30 m)
• Platform Height - 60 ft (18.30 m)
• Horizontal Reach -50 ft 10 in (15.48 m)
• Below Ground Reach -10 ft 9 in (3.27 m)
• Lift Capacity: 1000 lbs (454 kg) / 500 lbs (227 kg)

Key Features

• Imperial measurements of working height add 6 ft to platform height. The metric equivalent adds 2 m to platform height
• Maximum outreach zone / maximum capacity zone.
