GENIE TZ-50

For the ultimate in reach and range, you can’t beat the Genie® TZ™-50. The TZ-50 offers outstanding “up, out and over” capabilities in a compact, lightweight package that is easy to maneuver in congested work areas.

Overview

  • Compact, narrow design is easy to maneuver in congested work areas
  • Ground and platform controls utilize symbols to simplify operation
  • Optional Drive and Set™ feature lets you drive the unit from the platform when fully lowered
  • Easy access to batteries — just release the clamp and remove the cover
  • 359˚non-continuous turntable rotation
  • AC power to platform
  • Illuminated outrigger indicators
  • Tilt alarm/sensor

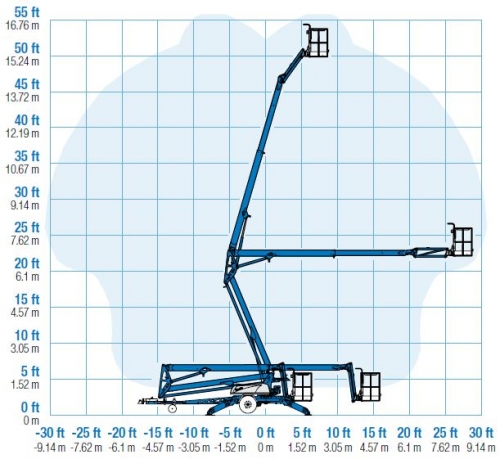

SPECIFICATIONS

  • Working Height: 55 ft 6 in (17.09 m)
  • Horizontal Reach -29 ft 2 in (8.89 m)
  • Up & Over Clearance - 22 ft (6.71 m)
  • Lift Capacity - 500 lbs (227 kg)

Features

  • Lift capacity varies depending on options and country standards.
